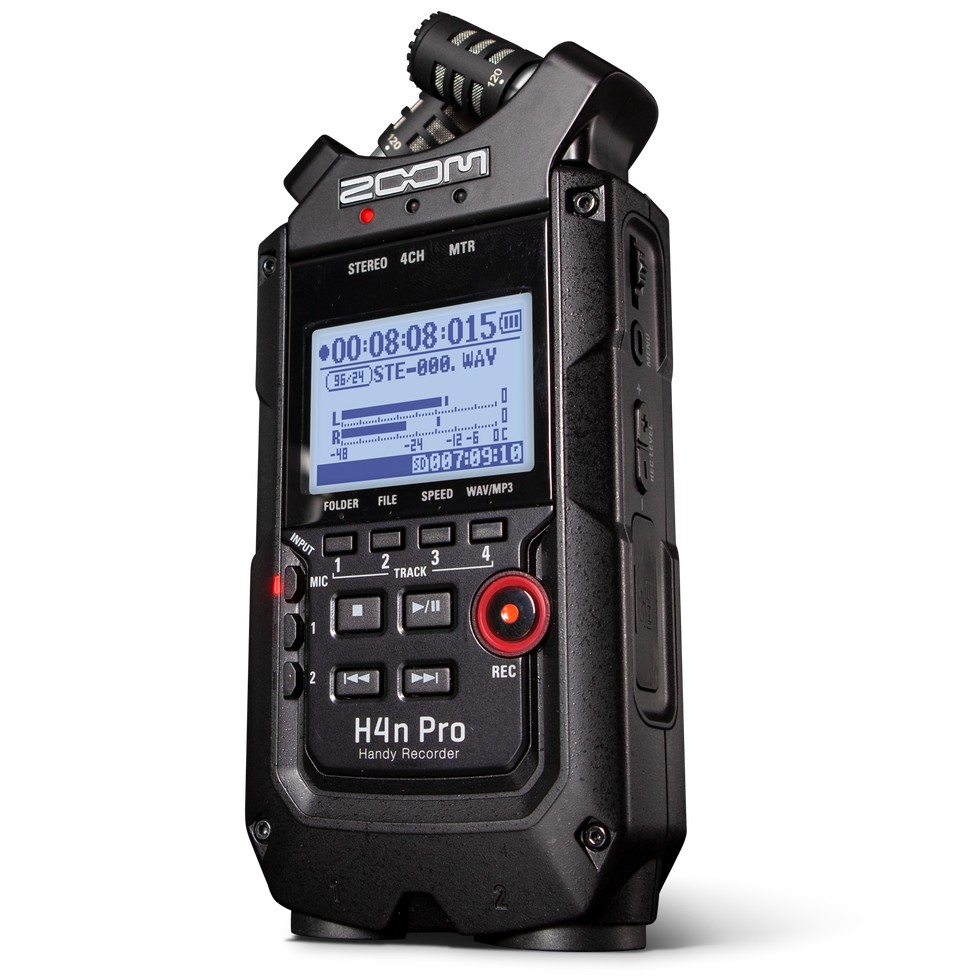

Zoom H4nPro Handy 4-Channel Recorder Black Edition
Renere og klarere opptak enn noen gang før.
Strålende Fire-spors lydopptak for musikk, film, Podcasting og mere til.
H4n Pro har tatt alt det beste fra H4n og løftet det til et nytt nivå.
H4n Pro er ikke bare bedre, det er overlegen på alle måter. Med mer avanserte X/Y mikrofoner, bedre preamper, og et super-lavt støynivå, kan du ta opp alt fra Indy 500 til lyden av en flagrende kolibri.
Velkommen til den nye gullstandarden i feltopptak.
GENERAL
Number of simultaneous recording tracks:
2 (STEREO mode), 4 (4CH mode), 2 (MTRmode)
Number of simultaneous playback tracks:
2 (STEREO mode), 4 (4CH mode), 4 (MTRmode)
Recording time 4 GB (SDHC):
Approx. 380 minutes (WAV 44.1 kHz / 16-bit stereo track)
Approx. 68 hours (MP3 44.1 kHz / 128 kbps stereo track)
* Recording times are approximations. Actual times may differ according to recordingconditions.
Maximum file size of simultaneous recording:
2GB
Projects:
1000/card
Locate function:
Hours/Minutes/Seconds/Milliseconds
Other functions:
Punch-in/out, Bounce, A-Brepeat
Effects modules:
2
STEREO / 4CH Mode: LO CUT, COMP/LIMITER
MTR Mode: PRE AMP module, EFXmodule
Types:
53
Patches:
60
Tuners:
Chromatic, Guitar, Bass, Open A/D/E/G,DADGAD
Metronome sound sources:
5
Variable beat:
1/4 - 8/4, 6/8,unaccentuated
Tempo:
40.0 - 250.0BPM
A/D conversion:
24-bit × 128oversampling
D/A conversion:
24-bit × 128oversampling
Recording media:
SD card (16 MB 2 GB), SDHC card (4 GB 32GB)
Display:
128 x 64 dots Full-dot backlitLCD
DATA TYPE - WAV FORMAT (RECORD/PLAY)
Quantization:
16- /24-bit
Sampling frequency:
44.1 / 48 / 96kHz
DATA TYPE - MP3 FORMAT (RECORDING)
Bit rate:
48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps,VBR
Sampling frequency:
44.1kHz
DATA TYPE - MP3 FORMAT (PLAYBACK)
Bit rate:
32, 40, 48, 56, 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 kbps,VBR
Sampling frequency:
44.1 / 48kHz
INPUTS
Input [1] [2]:
XLR (balanced input) / standard phone (unbalanced input) combojack
Input impedance:
(Using balanced input) 3 kO or more, pin 2 hot
(Using unbalanced input) 470 kO ormore
Input gain:
(Using balanced input) -16 dB to +43 dB
(Using unbalanced input) -30 dB to +32dB
Built-in stereo mic:
Unidirectional condenser microphone
Sensitivity: -45 dB/1 Pa at 1 kHz
Input gain: -16 dB to +51 dB
Maximum sound pressure input: 140 dBSPL
External mic:
Mini stereo phone jack
Input impedance: 2 kO or more
Input gain: - 16 dB to +51dB
OUTPUTS
Line/phone:
LINE Output load impedance: 10 kO or more
LINE rated output level: -10 dBu
PHONE: 20 mW + 20 mW (into 32Oload)
Monaural speaker:
400 mW 8O
Phantom power:
48V, 24V,OFF
USB:
USB 2.0 High Speed Mass Storage Class operation, Audio interface operation
(USB functions can be operated by USB buspower)
Power requirements:
DC 5V 1A AC from AC adapter (ZOOM AD-14), 2 x AAbatteries
Batteries:
IEC R6 (size AA) x2
Continuous recording time:
STEREO mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 6 hours using alkaline batteries or about 8 hours using NiMH (2450mAh)batteries
STAMINA mode
Using built-in mics at 44.1 kHz/16-bit without headphones connected
About 10 hours using alkaline batteries or about 12 hours using NiMH (2450mAh)batteries
Dimensions:
73 (W) × 157.2 (D) × 37 (H)mm
Weight:
294g
* 0 dBm = 0.755 Vrms
* Design and specifications subject to change withoutnotice.
