Modul Roland TD-17, V-Drum lydmodul

Modul Roland TD-17, V-Drum lydmodul

THE SOUND AND EXPRESSION TO HELP YOU TO BECOME A BETTER DRUMMER, FASTER

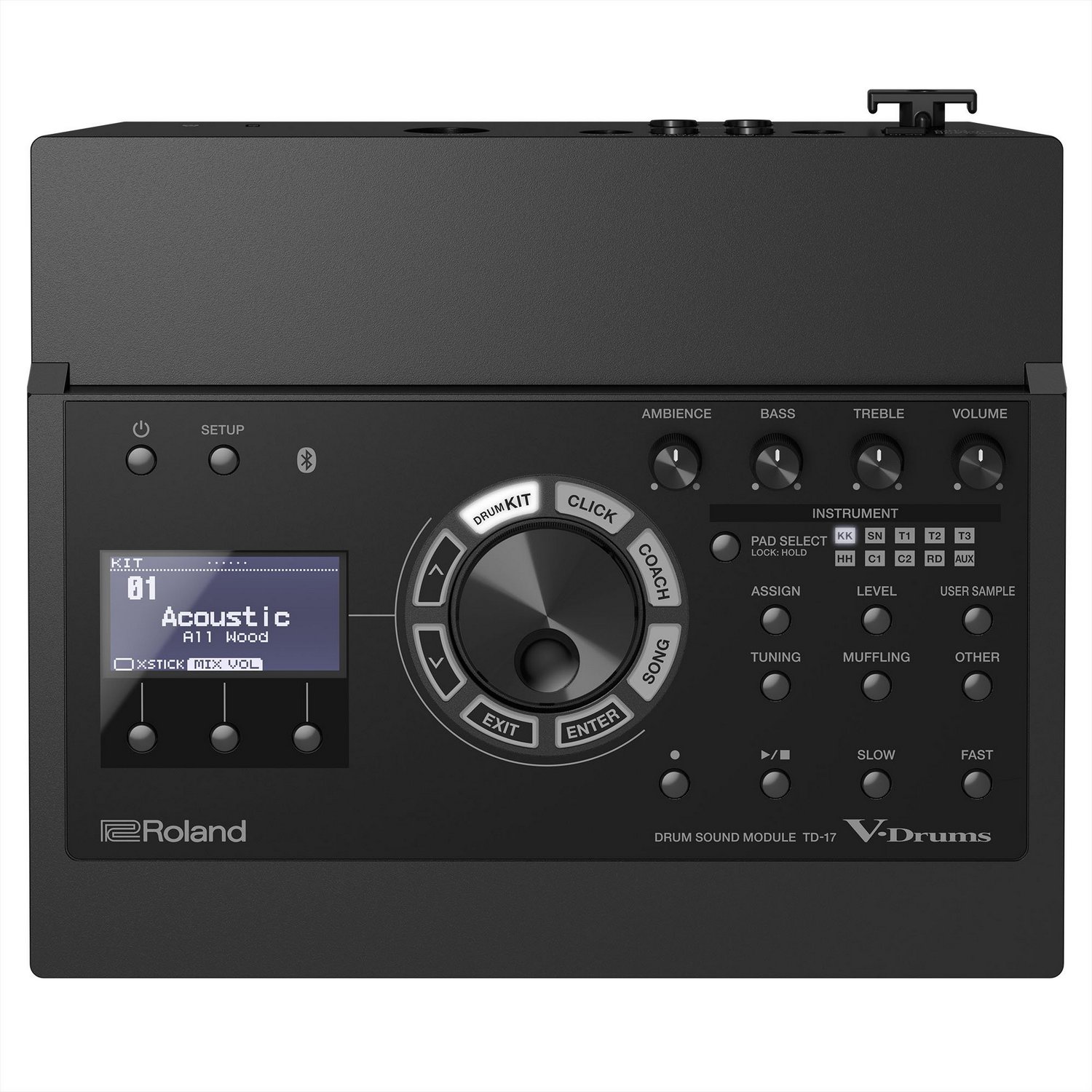

The TD-17 Sound Module offers plenty of digital advantages to improve your drumming skills. It features a sound engine inherited from the flagship TD-50, for pro-quality expressive drum sounds that can faithfully reproduce the playability of acoustic drums.

An array of built-in coaching functions will track your technique, measure your progress and increase your motivation.

You can play along with your favorite tunes or watch online drum lessons while listening to the audio wirelesslypairing your smartphone with the TD-17 via Bluetooth®, which makes your daily practicing fun. With a host of interactive drumming features, the TD-17 module can help you to become a better drummer, faster.

SPECIFICATIONS

• Drum kits100 (Preset: 50)
• Instruments 310
• Instrument parameters- Level (Volume), Pan, Tuning, Muffling, Snare Buzz, Strainer
• User Sample : Internal memory size: 32M bytes Number of user sample: Maximum 100 (includes factory preloaded user samples) Sound length (total): 24 minutes in mono, 12 minutes in stereo File format: WAV (44.1 kHz, 16/24 bits)
• Kit effect: Ambience: 25 types Multi effect: 30 types Pad equalizer: 3 band (Low, Mid, High), Capable to each pad
• Master effect: Equalizer: 2 band (Bass, Treble)
• Bluetooth (excluding TD-17-L) *1Supported standards: Bluetooth Ver 4.2 Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy) Codec: SBC (Support to the content protection of the SCMS-T method)
• Internal Songs 7
• Song Player File format: WAV (44.1 kHz, 16/24 bits), MP3 *2
• Recorder Recording Method: Realtime
  Maximum length: 60 min (Temporary recording: 3 min) *3
  File format: WAV (44.1 kHz, 16 bits)
• Display128 x 64 dots graphic type LCD (with backlit)
• External memorySD card (SDHC supported)
• ConnectorsTRIGGER INPUT connector: 1 (DB-25 type) (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jack: 2 (CRASH 2, AUX) (1/4-inch TRS phone type) MASTER OUTPUT jack: 2 (L/MONO, R) (stereo 1/4 inch phone type) PHONES jack: 1 (stereo miniature phone type) MIX IN jack: 1 (stereo miniature phone type) MIDI OUT jack: 1 USB COMPUTER jack: 1
• Output ImpedanceOUTPUT jack: 1k ohms PHONES jack: 94 ohms
• Input ImpedanceMIX IN jack: 11k ohms
• USB COMPUTER jackSpeed: Hi-speed USB Driver mode: Generic, Vender Protocol: USB MIDI, USB Audio *4
• USB AudioSampling Rate (Original): 44.1 kHz Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz Record: 2 channels (1 stereo) Playback: 2 channels (1 stereo)
• Power SupplyAC adaptor (DC 9 V)
• Current Draw490 mA
• AccessoriesSound module mount AC adaptor Special connection cable Owner's Manual Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Pads: PD series, PDX series, BT series Cymbals: CY series Kick: KD series Kick pedal: KT series Hi-hat: VH-11, VH-10 Hi-hat control pedal: FD series Drum stand: MDS series Cymbal mount: MDY series Pad mount: MDH series Acoustic drum trigger: RT series Personal drum monitor: PM series V-Drums accessory package: DAP-3X V-Drums mat: TDM series Noise eater: NE series SD card

• SIZE AND WEIGHT Width223 mm 8-13/16 inches Depth196 mm 7-3/4 inchesHeight65 mm 2-9/16 inchesWeight (excluding AC adaptor)0.9 kg 2 lbs*1 Bluetooth function is not available for TD-17-L.*2 Audio files must be saved on an SD card.*3 Song recording is required SD card. The case of no inserted SD card is capable to record the temporary recording approximately 3 minutes.*4 USB Audio is required the using vender driver and switched vender mode.
